Типы контейнеров

Dry freight containers

	Dry freight container		High cube container
	20ft	40ft	40ft	45ft
	8ft 6"	8ft 6"	9ft 6"	9ft 6"
Internal:
Length (mm)	5900	12033	12033	13558
Width (mm)	2352	2352	2352	2354
Height (mm)	2386	2389	2694	2696
Door Opening:
Width (mm)	2340	2340	2340	2340
Height (mm)	2280	2275	2580	2586
Weight:
Max Gross Weight (kg)	*24000	30480	30480	30480
Tare Weight (kg)	2240	3730	3800	4800
Payload (kg)	21760	26750	26680	25680
Cubic Capacity (cu m)	33.0	67.6	76.3	86.0

*some 30480kg

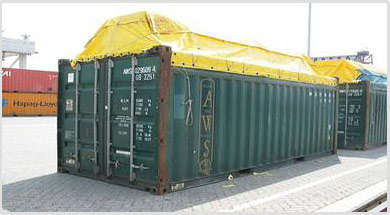

Open tops



Dimensions:	20ft	40ft
External:
Length (mm)	6058	12191
Width (mm)	2438	2438
Height (mm)	2591	2591
Internal:
Length (mm)	5889	12044
Width (mm)	2335	2350
Height (mm)	2312	2374
Door Openings
Width (mm)	2340	2336
Height (mm)	2225	2287
Open Header Width (mm)	1864
Top Opening
Length (mm)	5780
Width (mm)	2225
Weight
Maximum Gross Weight (kg)	24000*	30480
Tare (kg)	2020	3980
Payload (kg)	21980	26500
Cubic Capacity: (cu m)	31.8	66.3

*Some 30,000kg

Flatracks platforms

	20ft Flatrack	40ft Flatrack		Platform Flats
	Spring Assisted	SeaDeck	Spring Assisted	SeaDeck	20ft	40ft
Internal:
Length (mm)	5949	5965	12030	12078	6058	12192
Side Opening (mm)	5670	5644	11757	11662	N/A	N/A
Width (mm)	2433	2200	2364	2369	2438	2438
Height (mm)	2271	2222	1949	1943	N/A	N/A
Weight (kg)
Maximum Gross Weight	30000*	35560**	35562****	45000****	26900	40000
Tare	2600	2820	4995	5300	1500	4220
Payload	27400	32740	30567	39700	25400	35780

* some 25400kg
** some 30000kg
*** some 30480kg
**** some 35562kg
